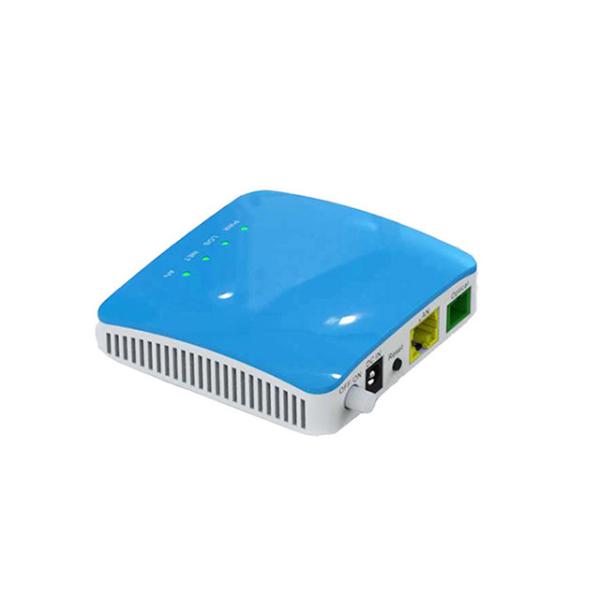

Realtek Chipset Layer 2 1GE Single Family Unit SFU FTTH Device

Name: Realtek Chipset Layer 2 1GE Single Family Unit SFU FTTH Device
Brand: JiZhong FTTH Device
Price: 1 USD

China Realtek Chipset Layer 2 1GE Single Family Unit SFU FTTH Device factory

Brand Name : JiZhong FTTH Device

Model Number : JZOG-1120

Place of Origin : China

MOQ : 1pcs

Price : Negotiatable

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs per month

Delivery Time : 5 work days

Packaging Details : Standard export packing

Product name : 1GE FTTH Device

PON NO : 1pcs

Fiber mode : Single fiber

Wavelength : TX:1310nm, RX:1490nm

Portocol : GPON: ITU-T G.984.1/2/3/4; EPON: 802.3-2005 and CTC EPON

Power loss : ≤1.5W

Connector type : SC/PC

Contact Now

1GE Single Family Unit SFU FTTH Device

Model NO:JZOG-1120

FTTH Device Descriptions:

GPON user terminal equipment application oriented operation level of FTTH, can support the pure data service access, 802.3ah international standards for the design of the GPON based ONU products, and follow the technical requirements of China Telecom, with good interoperability, and mainstream manufacturers OLT office end equipment interoperability. It can be interconnected with the OLT equipments of the mainstream Bureau end manufactures to meet the needs of FTTH and FTTO scene construction and the application of family users. It supports the development of large broadband data and Internet access services, and provides good QOS and security protection.

FTTH Device Parameters:
Connector type	SC/PC
PON No.	1
Fiber mode	Single fiber
Wavelength	Transmitting port:1310 +/-20nm, Receiving port:1490 +/-10nm
Portocol	GPON: ITU-T G.984.1/2/3/4; EPON: 802.3-2005 and CTC EPON
Speed	GPON: download 2.488Gbit/s, upload 1.244Gbit/s;
	EPON: symmetric 1Gbit/s
Output optical power	Min. 0dBm; max. +4dBm
Receiver sensitivity	max -27dBm
Receiver optical power	Min. -3dBm
Damaged threshold value	7dBm
Optical link length	Max. 20km
Others
Power supply(DC)	DC 12V 0.8A
Power loss	≤1.5W
Working tempreturer	-10 ~ +45℃
Storage tempreture	-40 ~ +75℃
Ralative humantity	max.95%%

FTTH Device Interface:

Realtek Chipset Layer 2 1GE Single Family Unit SFU FTTH Device

The Details of FTTH Device:

Realtek Chipset Layer 2 1GE Single Family Unit SFU FTTH Device
